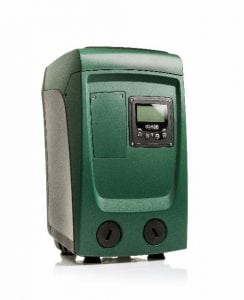

DAB E.sybox Mini

E.Sybox Mini
E.SYBOX mini is the DAB compact automatic pressurisation system for the water supply of a single dwelling.
E.SYBOX mini guarantees the comfort of constant pressure inside the system, and energy savings thanks to the inverter technology.

Suitable for use with drinking water, in domestic systems,
and in gardening applications.

E.SYBOX mini does not require any additional components for its installation.

TECHNICAL DATA
Operating range:
capacity up to 80 l/min; head up to 55 m
Maximum suction depth: 8 meters
Maximum ambient temperature: +50°C
Maximum operating pressure: 7,5 bar (750 kPa)
Motor protection rating: IPX4
Insulation class: F
Installation: Horizontal or vertical fixed position
