DAB E.Sybox

E.Sybox
E.SYBOX is DAB’s integrated electronic water pressurisation system for domestic, residential and light commercial use.
The E.SYBOX inverter system provides the comfort of constant water pressure, while saving energy too.
APPLICATIONS: Suitable for use for potable water, in domestic plants for gardening and irrigation.
Suitable for creating groups of up to 4 pumps. E.SYBOX requires no additional components for installation.

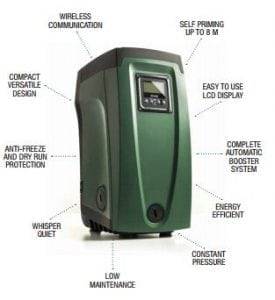

FEATURES: Comprises a self-priming, multi-stage pump with electronic inverter management, pressure and flow sensors, adjustable, high resolution LCD display and an integrated 2 litre expansion tank. May be installed either vertically or horizontally, in closed spaces without high level of air exchange. The accessories (e.sywall, e.sydock, e.sytwin, e.sytank) permit several installation possibilities. The water-cooled motor, the protective and sound damping ABS hull, the anti-vibration feet and its electronics make this compact product very quiet (45dB under normal use). The wireless system enables the creation of other pressurisation groups able to connect with other DAB devices (eg, e.sylink).
TECHNICAL DATA:
Operating range: Capacity up to 120 l/min; head up to 65 m
Maximum suction depth: 8 metres – 7 metres 30/50 version
Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C Maximum ambient temperature: +40°C
Maximum operating pressure: 8 bar (800 kPa)
Motor protection rating: IPX4, Insulation class: F
Installation: Horizontal or vertical fixed position
Special executions on request: alternative voltages and/or frequencies.
